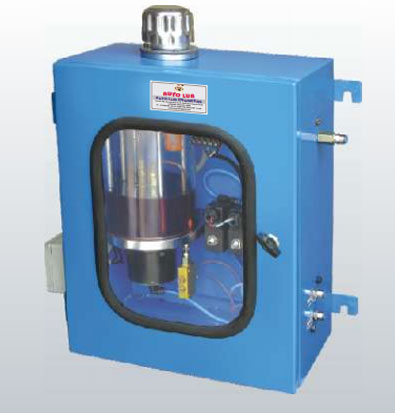

OIL MIST LUBRICATOR
TECHNICAL SPECIFICATIONS
Mist lubrication unit is designed to meet the requirement where oil is supplied in the form of fog/ mist. It is basically pneumatically operated. It is available both in intermittent/ continuous discharge, through pneumatic pump, oil come in atomizer with the help of progressive block/ metering cartridge/ control valve and with air from the solenoid valve, we get the mist lubrication. Air is controlled by ON/OFF Solenoid valve.
| MODEL | DESCRIPTION |
| ALOML-750 (Intermitted/ continuous) | Reservoir cap. 0.75 Ltrs., Air pressure req.3-5 Kg/cm², Input voltage 220 V. Lubricant : any lubricant with viscosity 10 to 1000c St at 400ºC |
| ALOML-1500 (Intermitted/ continuous) | Reservoir cap. 1.5 Ltrs., Air pressure req.4-6 Kg/cm², Input voltage 220 V Reservoir cap. 1.5 Ltrs., Air pressure req.4-6 Kg/cm², Input voltage 220 V |
APPLICABILITY: Conveyors, Sliding Chains, Textile Machines, Stripes, Spindles, Shearing Machines etc.
