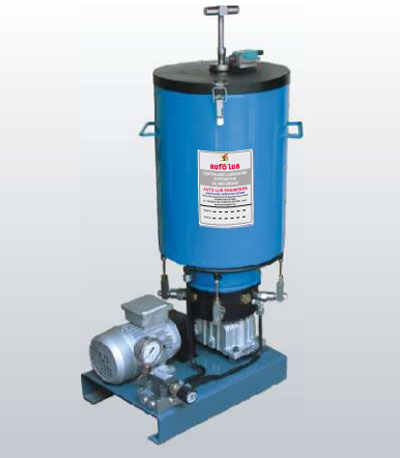

MULTI POINT RADIAL LUBRICATOR
TECHNICAL SPECIFICATIONS
The Radial Lubricating System is used for ejecting predetermined lubricant wether it is soft grease or thick oil under pressure to different points of the lubrication. The system is best suited for machinery such as Cement Plants Sugar Plants Textile Plants, Rubber Processing Plants, Chainsaw machine, Presses and Hammers.
| MODEL | ALRL-5-4 | ALRL-10-10 | ALRL-15-20 | ALRL-75-30 |
| Tank Capacity | 5 Kg | 10 Kg. | 15 Kg. | 75 Kg |
| No. of pump elements | 5 | 10 | 20 | 30 |
| Power of Motor - H.P. 415 Volt AC, 3 Phase 1500 RPM Syn. | 0.25 | 0.50 | 1.0 | 1.5 |
| Discharge of Pump / cycle (Adjustable )-cc | 0.10 to 0.25 (Max. 6 gm / minute) per pump element | |||
| Gear Box reduction Ratio | 70 : 1 | |||
| Working Pressure | 200 Kg / Cm ² Maximum. | |||
