MOTORISED LUBRICATION UNITS

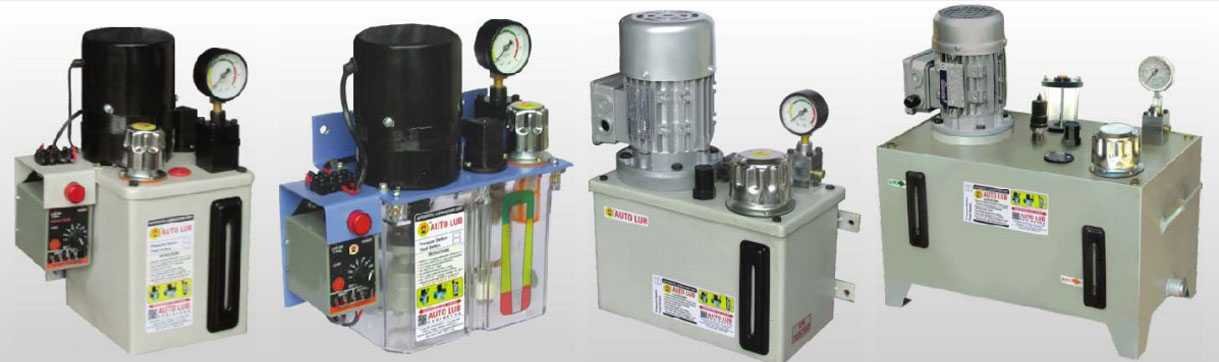

Motorised lubrication unit equipped with positive displacement rotary pump driven by an electric motor. This pump discharge oil to the lubricating line. The unit is meant for intermittent lubrication and suitable for centralised lubrication single shot type. Unit is supplied with reservoir, oil filler cum air breather, suction strainer, pressure relief valve, bleed valve etc.
TECHNICAL SPECIFICATIONS
| MODEL | RESERVOIR | DISCHARGE | MOTOR RPM1400 (Syn) | RELIEF VALVE | PRESSURE SWITCH | FLOAT SWITCH |
| ALLS-2700 | 2.7 Ltrs | 1 LPM | 0.09 KW,220V AC. Single phase | 12 kg/Cm² | Optional | Optional |
| ALLS-03 | 3 Ltrs. | 1 LPM | 0.10 KW,220V AC. Single phase | 12 kg/Cm² | Optional | Optional |
| ALELU-2700 | 2.7 Ltrs. | 1 LPM | 0.12 KW,415V AC. 4Pole, 3 phase | 15 kg/Cm² |
220 V, 1Amp. With 1 NO+1NC Contact preset at 12 Kg/Cm² |
220 V, 1Amp. With NO or NC contacts |
| ALLU-03 | 3 Ltrs | 1 LPM | 0.12 KW,415V AC. 4Pole, 3 phase | 15 kg/Cm² | - do - preset at 12 Kg/Cm² | - do - |
| ALLU-05 | 5 Ltrs. | 3 LPM | 0.12 KW,415V AC. 4Pole, 3 phase 2 | 20 kg/Cm² | - do - preset at 15 Kg/Cm² | - do - |
| ALLU-08 | 8 Ltrs. | 3 LPM | 0.18 KW,415V AC. 4Pole, 3 phase. | 25 kg/Cm² | - do - preset at 18 Kg/Cm² | - do - |
| ALLU-20 | 20 Ltrs | 3 LPM | 0.18 KW,415V AC. 4Pole, 3 phase. | 25 kg/Cm² | - do - preset at 18 Kg/Cm² | - do - |
