MOTOR PUMP ASSEMBLY

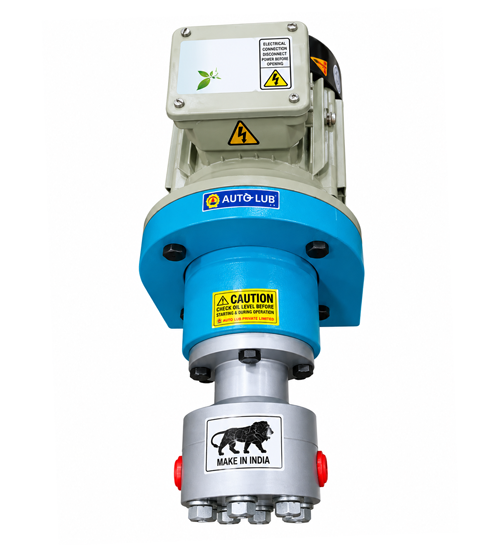

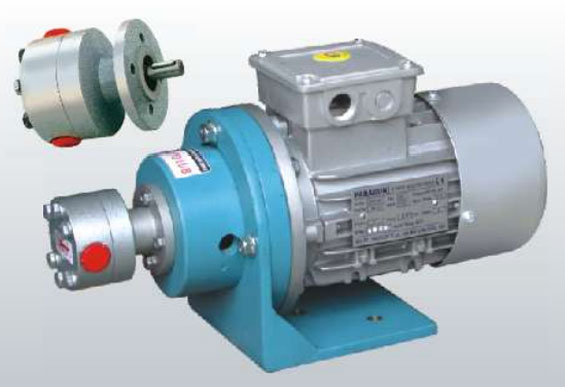

MOTOR PUMPASSEMBLY consists of a pump, an electric motor and an ‘L’ bracket. This ‘L’ type bracket is used to tighten the pump and adopter by means of four
mounting bolts.
Motor pump assembly is used for oil lubrication especially where continuous and high dosage of oil is required. It is also applied under oil circulation systems. It is
used almost in all machines where free flow of oil is required. The different specification is available with different model. It can suck the oil from 2 ft. downwards and
circulate the oil up to 10 ft. Height. The rotation of motor pump assembly is indicated on the label. Four mounting holes are provided to mount the system. An electrical
terminal box on the surface of the motor is provided for connection.
OPTIONAL:- Suction strainer, relief valve, flow control valve can be provided on requirement
TECHNICAL SPECIFICATIONS
| MODELS | DISCHARGE | MOTOR (Flange Mounted) | PUMP |
| ALMPA - 1 | 1- 3 Litre per minute (Adj) | 0.18Kw, 415 V. AC.1440rpm. | PP-1 |
| ALMPA - 6 | 6 Litres per minute | 0.37Kw, 415 V. AC.1440rpm. | PP-6 |
| ALMPA - 10 | 10 Litres per minute | 0.75Kw (1HP), 415 V. AC.1440rpm | PP-10 |
| ALMPA - 16 | 16 Litres per minute | 1.50Kw (2HP), 415 V. AC.1440rpm | PP-16 |
| ALMPA - 25 | 25 Litres per minute | 1.50Kw (2HP), 415 V. AC.1440rpm | PP-25 |

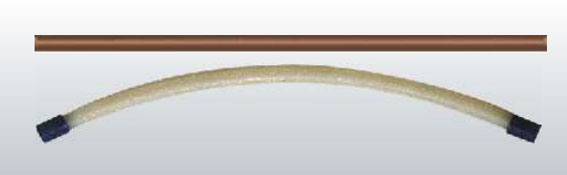

NYLON & STEEL TUBES
TECHNICAL SPECIFICATIONS
| ST-4 | OD-4mm, Steel tube (Copper coated) |
|
ST-6 |
OD-6mm, Steel tube (Copper coated) |
| ST-10 | OD-10mm,Steel tube (Copper coated) |
| NT-4 | OD-4mm, Nylon tube |
| NT-6 | OD-6mm, Nylon tube |
| NT-10 | OD-10mm, Nylon tube |

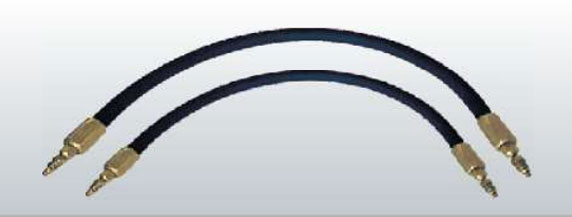

FLEXIBLE RUBBERISED HOSE
TECHNICAL SPECIFICATIONS
| ALT- 002 | ALT- 002 | ALT- 004 |
| No. of outlets - 2, Dosage in cc 0.1 to 0.4, Dosage in Drops 3 - 12. | No. of outlets - 3, Dosage in cc 0.1 to 0.4, Dosage in Drops 3 - 12. | No. of outlets - 4, Dosage in cc 0.1 to 0.4, Dosage in Drops 3 - 12. |

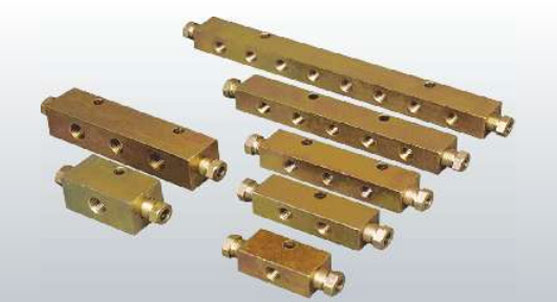

MANIFOLDS
TECHNICAL SPECIFICATIONS
|
For Single D-1 or D-2 Metering Cartridges |
|
| MF-1 | One way (for single oil Metering Cartridge) |
| MF-2 | Two way (for two oil Metering Cartridges) |
| MF-3 | |
| MF-4 | |
| MF-5 | |
| MF-6 | |
| MF-7 | |
| MF-8 | |
|
For Single D-3 Metering Cartridges |
|
| MF-1A | One way (for single oil Metering Cartridge) |
| MF-2A | Two way (for two oil Metering Cartridges) |
| MF-3A | Three way (for three oil Metering Cartridges) |
| MF-4A | Four way (for four oil Metering Cartridges) |
