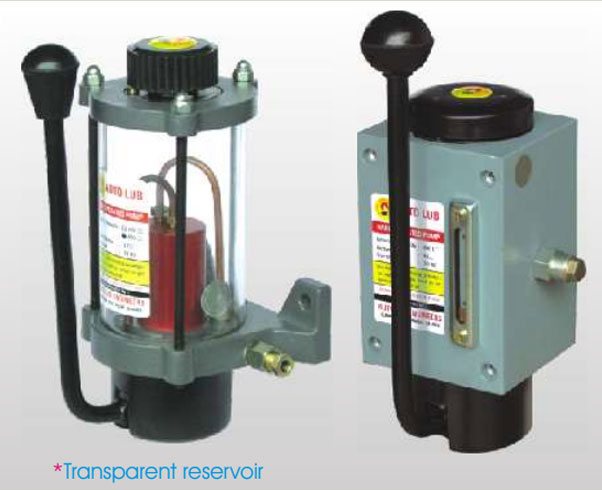

HAND OPERATED PISTON PUMPS
TECHNICAL SPECIFICATIONS
This is a piston pump with oil reservoir of different capacity. The pump discharges oil on pulling the handle. The piston returns to its original position by spring force and pressure generated approx. 1Kg/cm² in the lubrication line. When piston is operated oil is ejected out form the outlet of the piston pump under pressure.
| MODLE | RESERVOIR CAP | PRESSURE SETTING | DISCHARGE |
| ALHP-250-4 | Reservoir cap. 0.25 Ltr. | Pr.setting 12Kg/Cm² | 4cc per stroke, |
| ALHP-600-6 | Reservoir cap. 0.60 Ltr | Pr.setting 15Kg/Cm² | 6cc per stroke |
| ALHP-1700-10 | Reservoir cap. 1.70 Ltr | Pr.setting 20Kg/Cm² | 10cc per stroke |
| ALHPT-200-4 Spl | Reservoir cap. 200cc | Pr.setting 15Kg/Cm² | 4cc per stroke |
| ALHPT-400-4 Spl | Reservoir cap. 400cc | Pr.setting 15Kg/Cm² | 4cc per stroke |
| ALHPT-800-4 Spl | Reservoir cap. 800cc | Pr.setting 15Kg/Cm² | 4cc per stroke |
